Solar Mini Rail

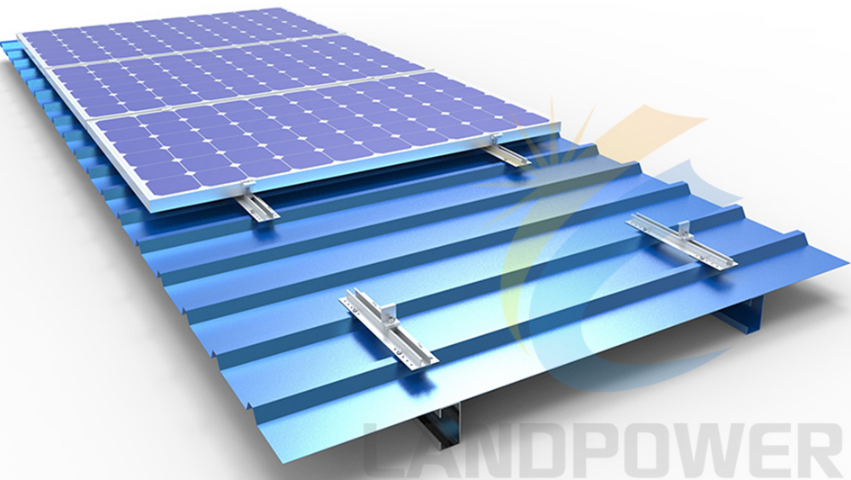

Aluminium Mini Rail Solar Mounting System is cost-effective solution for trapezoidal roof,corrugated roof etc, it is easy and simple roof solar mounting systems.
Technical Information
Install site:Trapezoidal Sheet Metal
Tilt Angle:Flushed with the roof(10-60 deg)
Max Wind Speed:<60m/s
Snow Load：<1.4KN/㎡
Material:Aluminum 6005-T5&Stainless Steel A2(304) EPDM
Color:Sliver,Black or Customized
Warranty:Ten years warranty and twenty-year service life
If you have any inquiry about the products,feel free contact to us.
