Pile Driven Ground Solar Mounting System

-(Magnesium Aluminum Zinc Plating)

Landpower Pile Driven Ground Mounting is a economic and fast-way installation solutions. By using pile driving machine hydraulically push magnesium aluminum zinc plating steel posts into the ground to the required depth without using poured concrete to support a steel racking systems, it just takes some seconds to finish a piling pole. The racking is strong and cost-effective which adaptable to most terrains.

(Landscape)

(Portrait)

Technical information

Installation Site:Open field

Module Type: Framed or Frame-less

Module Arrangement: Landscape

Tilt Angle: 20°

Foundation: Pile Driven

Wind Load: 20m/s

Snow Load: 1 KN/m2

Rail Material: Magnesium Aluminum Zinc Plating

Post Material: Hot-dip galvanized steel (optional)

Soil Condition: Non-sandy

Design Standard: ASCE 7-10,BS EN 1991-1-4:2005

Warranty: 10 years

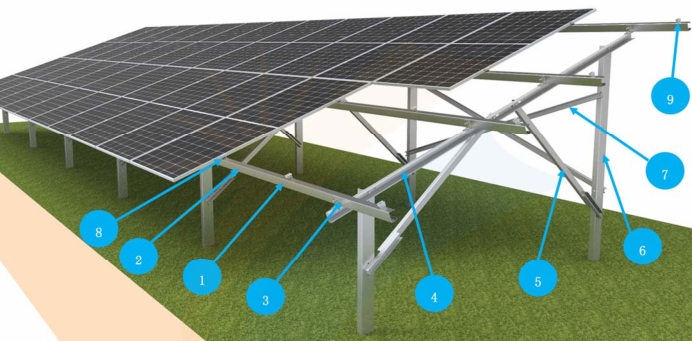

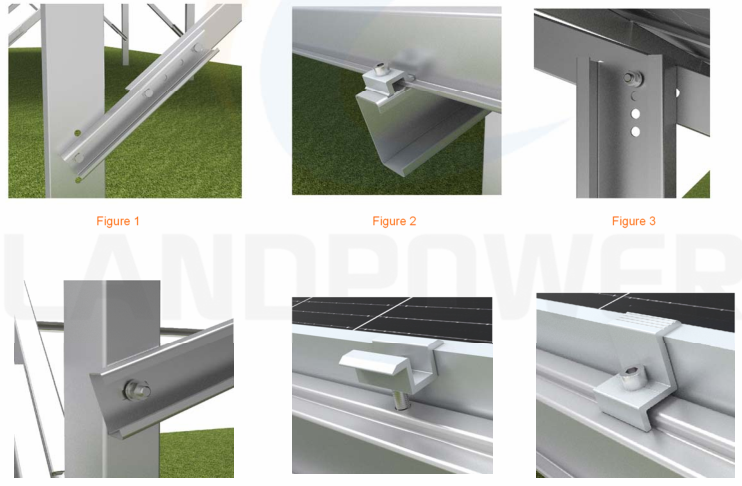

Detailed part

If you are interested in the pile driven ground solar mounting system,feel free to contact us.
