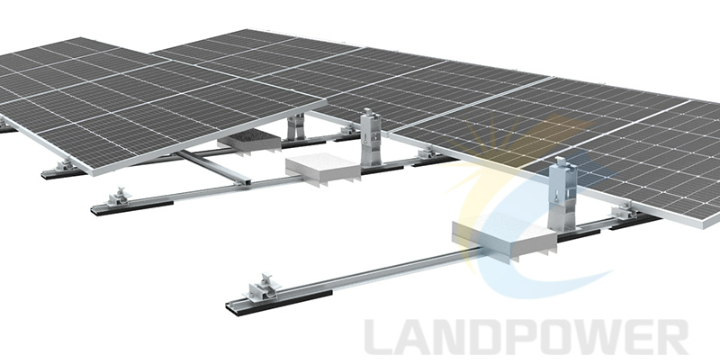

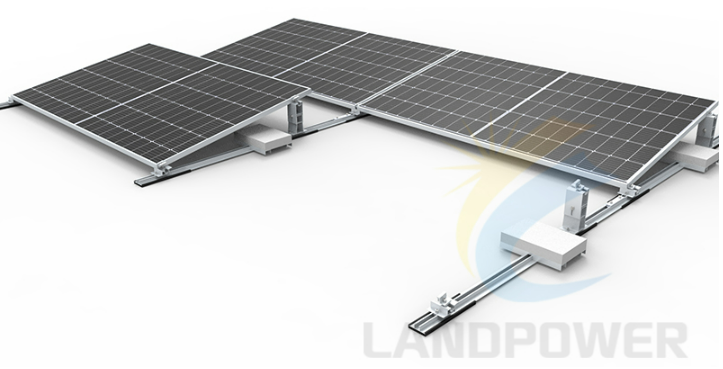

Flat roof solar mounting system for big solar panel

Advantage:

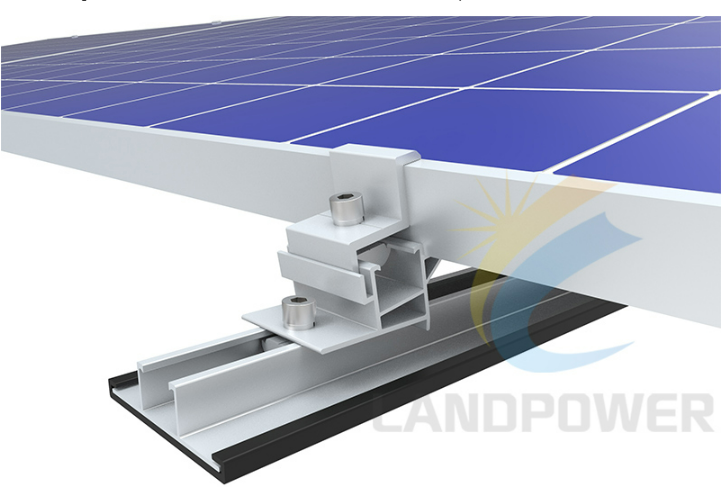

1.The mounting rail is with EPDM mat to increase friction on roof and compensates for tolerances.

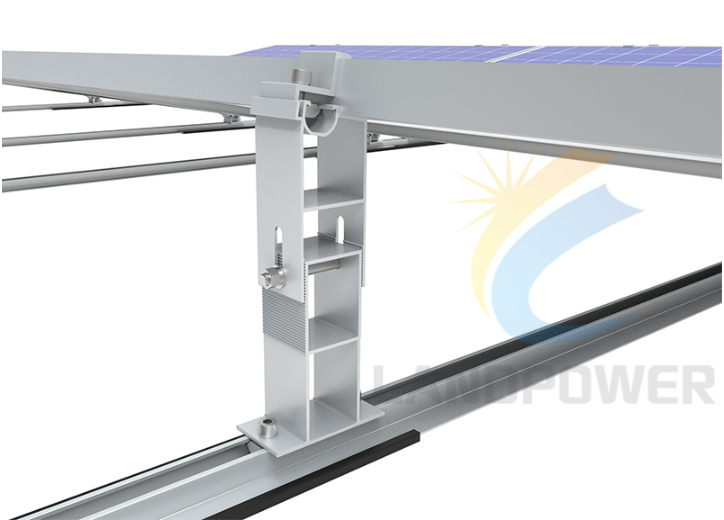

2.Adjustable design for rear supports which allows adjustable room for different side of panels and compensateds tolerances.

Fixting types

1.Short side fixing

2.Long side fixing

Technical Information

Install Site: Flat Roof or Metal Roof

Tilt Angle:10 degrees

Panel Orentation:South Facing or East West

Max Wind Speed:<60m/s

Snow Load:<1.4KN/㎡

Material:High Class Aluminum alloy Al 6005-T5 and Stainless Steel 304

please contact us if you have specific projects.

Email:sales9@landpowersolar.com
